Fixing a bicycle computer in the middle of nowhere
As a result of a thorough security check at FRA airport, the sensor of my bicycle computer is torn off and lost. At my destination (Kendari / Indonesia), I can neither find a new sensor nor a new computer. I go without a computer for over a week which is a pity as my GPS gives me trouble at the same time, so that all my distance figures on southern Buton are rough estimates.
Well, eventually I find a way to make a new sensor for this computer:

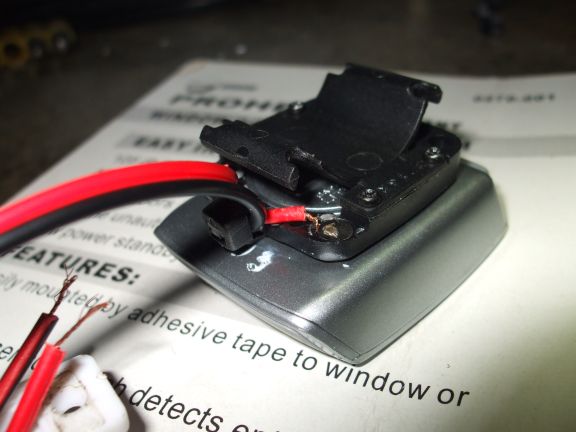

Step 1 - Find parts
- A door alarm that contains a magnetic contact (reed contact) - Found this in a gadget shop
- A piece of speaker cable - Available pretty much anywhere
- A candle - Found this in an ashtray at the guesthouse
- A lighter - There's one in my pack
Step 2 - Attach new cable to holder
Push out the contacts from the holder, replace the old cable with a new one, push the contacts back in so they hold the copper braid of the new cable, secure the new cable with a cable tie.

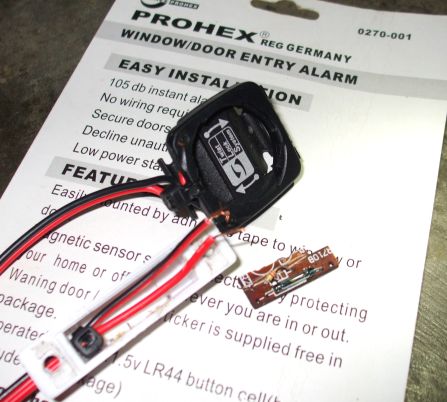

Step 3 - Prepare enclosure for sensor
Open the plastic enclosure of the door alarm's magnet and remove the magnet.
Drill a hole from one end into the enclosure, feed cable through, make a strain relief with cable tie.
Remove the reed contact from the door alarm's main unit. I take it together with a piece of the circuit board, as to avoid any risk of cracking the glass from heating the solder joints with a lighter.
Step 4 - Solder wires to reed contact
TV repairmen have the necessary equipment. This nice guy helped me out.

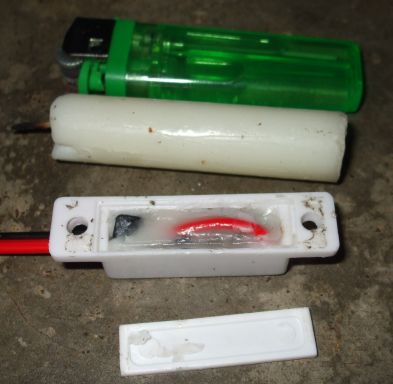

Step 5 - Seal sensor enclosure
A few drops of hot wax hold and seal the reed contact. The lid is put on while the wax is still hot.

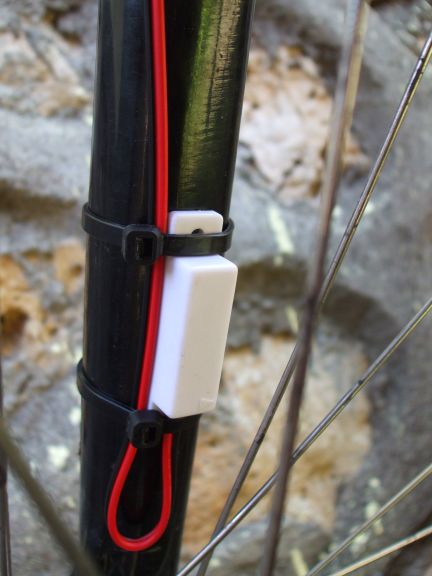

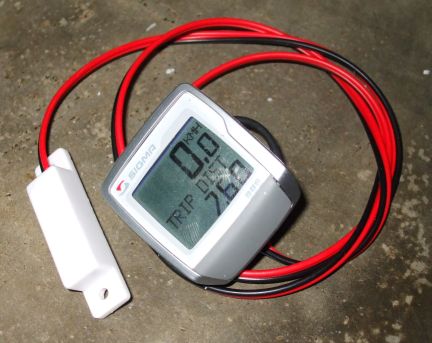

Works again, as good as new !
